Perforated Metal Panel and Cable Railing at Concrete Column

Materials

Elements

Columns Beams Facades / Cladding Railings / Guards

About this detail

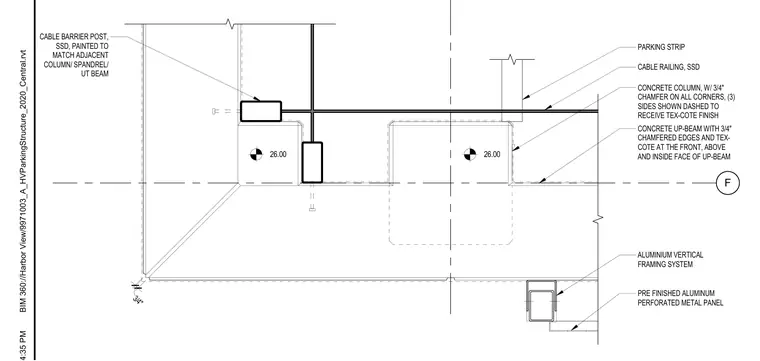

A cable railing system features a cable barrier post painted to match the adjacent column, spandrel, and up-beam. Structural concrete columns and concrete up-beams are detailed with three-quarter-inch chamfers on all corners, with three sides shown dashed to receive a textured elastomeric coating finish. An aluminum vertical framing system supports pre-finished aluminum perforated metal panels along the perimeter. A parking strip is located adjacent to the cable railing assembly.
