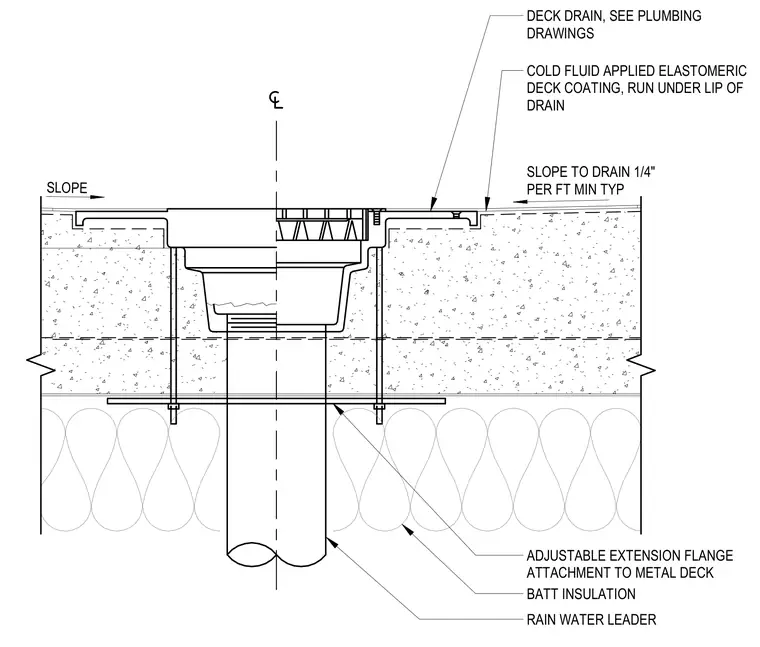

A deck drain is set flush into the balcony assembly with a cold fluid applied elastomeric deck coating running continuously under the lip of the drain. The deck is sloped at a minimum of 1/4 inch per foot toward the drain. An adjustable extension flange attaches to the metal deck above layers of batt insulation. A rain water leader drops down from the drain body through the insulation assembly.
DECK DRAIN, SEE PLUMBING DRAWINGS COLD FLUID APPLIED ELASTOMERIC DECK COATING, RUN UNDER LIP OF DRAIN ADJUSTABLE EXTENSION FLANGE ATTACHMENT TO METAL DECK BATT INSULATION RAIN WATER LEADER SLOPE TO DRAIN 1/4" PER FT MIN TYP SLOPE
