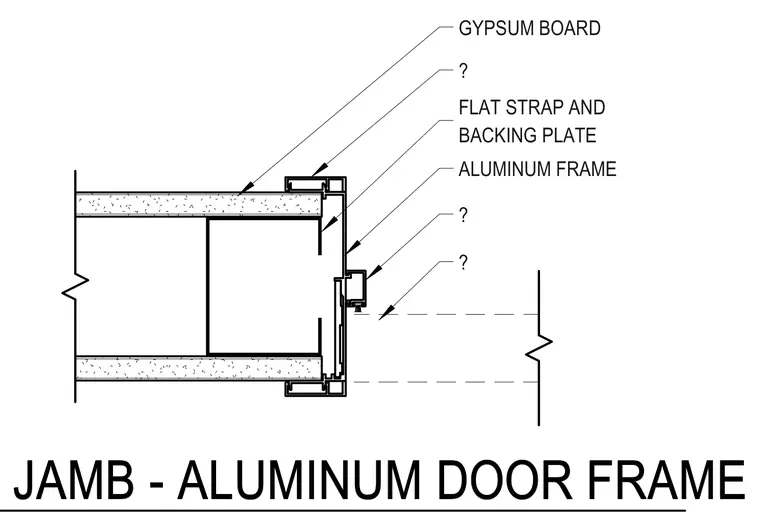

An aluminum door frame connects to a partition wall framed with gypsum board over metal studs. A flat strap and backing plate provide rigid anchorage for the door frame within the wall assembly.
? ? GYPSUM BOARD FLAT STRAP AND BACKING PLATE ALUMINUM FRAME ? JAMB - ALUMINUM DOOR FRAME
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
