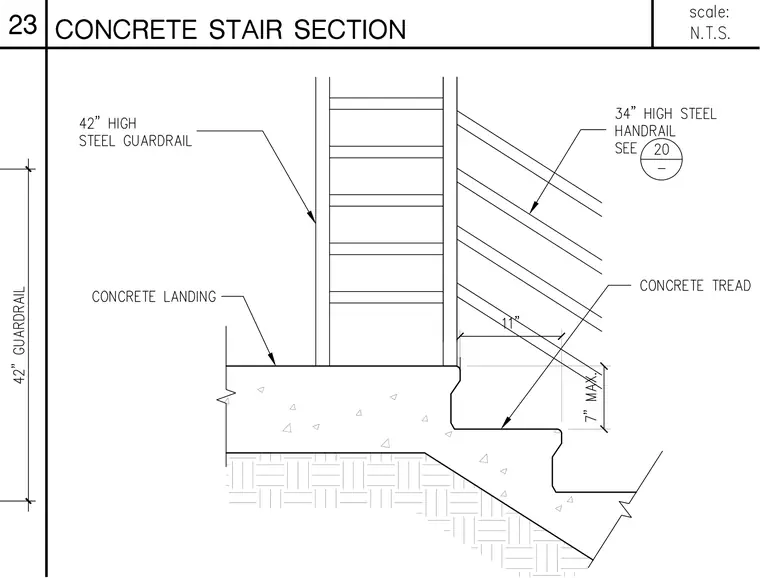

This concrete stair section details the transition from a concrete landing to concrete treads with an 11-inch run and a 7-inch maximum rise. A forty-two-inch high steel guardrail anchors to the concrete landing, while a thirty-four-inch high steel handrail mounts adjacent to the stair runs per detail reference twenty. Vertical dimensions specify the forty-two-inch guardrail height above the landing level.
