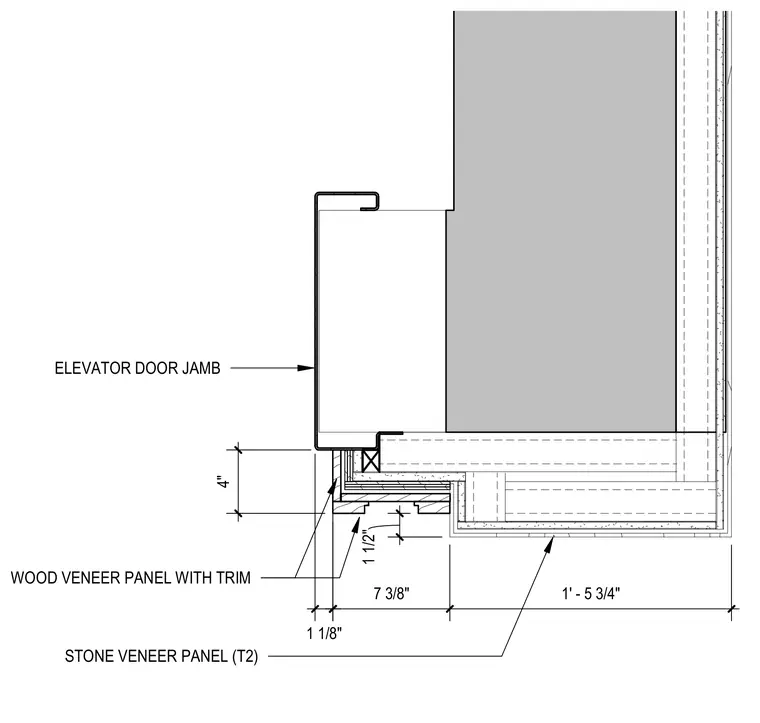

An elevator door jamb frames the opening adjacent to a multi-layer wall assembly finished with stone veneer panels designated as T2. A wood veneer panel with trim is detailed at the jamb return, offset by 1 1/8 inches and spanning 4 inches vertically. Dimensions indicate a 1 1/2 inch panel spacing and an overall assembly dimension of 1 foot 5 3/4 inches from the interior wall return.
4" 1 1/8" 7 3/8" 1' - 5 3/4" 1 1/2" WOOD VENEER PANEL WITH TRIM ELEVATOR DOOR JAMB STONE VENEER PANEL (T2)
