A six-inch by six-inch service access cutout is centered in the woven wire ceiling mesh directly below the interior light fixture located above storage units. All cut edges of the wire mesh are filed smooth typically. The interior light mounting height is suspended and dropped using metal conduit down to a junction box located six inches above the security mesh height.

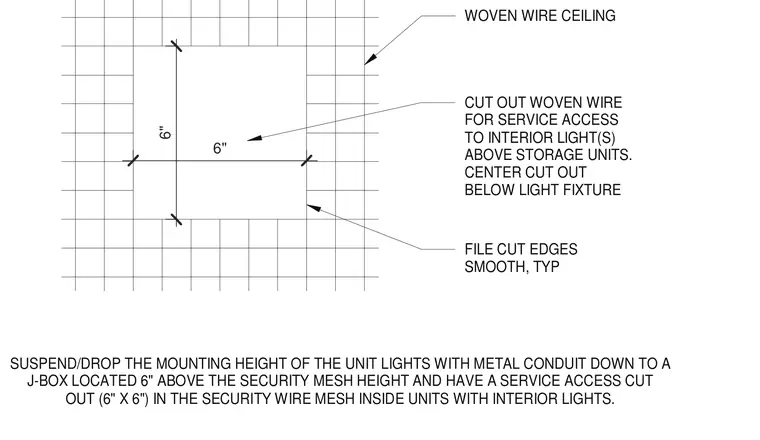

6" 6" WOVEN WIRE CEILING CUT OUT WOVEN WIRE FOR SERVICE ACCESS TO INTERIOR LIGHT(S) ABOVE STORAGE UNITS. CENTER CUT OUT BELOW LIGHT FIXTURE FILE CUT EDGES SMOOTH, TYP SUSPEND/DROP THE MOUNTING HEIGHT OF THE UNIT LIGHTS WITH METAL CONDUIT DOWN TO A J-BOX LOCATED 6" ABOVE THE SECURITY MESH HEIGHT AND HAVE A SERVICE ACCESS CUT OUT (6" X 6") IN THE SECURITY WIRE MESH INSIDE UNITS WITH INTERIOR LIGHTS.
