Architectural · A-WPWJ2

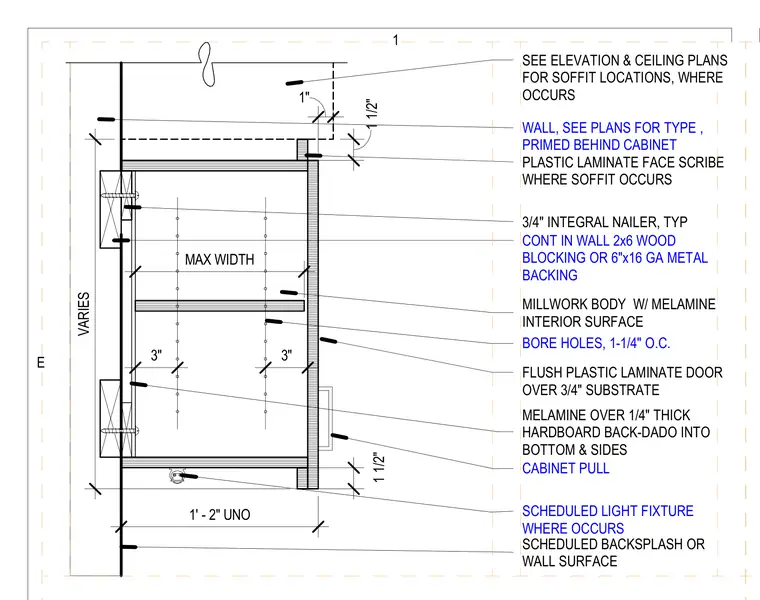

Upper Cabinet Wall Mounting and Millwork Section

Materials

Elements

Walls Doors Ceilings Millwork / Casework

About this detail

The upper cabinet assembly is anchored to the wall using continuous two-by-six wood blocking or six-inch sixteen-gauge metal backing installed inside the wall cavity. The millwork body consists of a melamine interior surface with a melamine over one-quarter-inch thick hardboard back, back-dadoed into the bottom and sides. A three-quarter-inch integral nailer at the top and bottom secures the cabinet to the wall backing. The flush plastic laminate door over a three-quarter-inch substrate is fitted with a cabinet pull and operational bore holes spaced one and one-quarter inches on center. The assembly accommodates a scheduled light fixture below and a flush plastic laminate scribe where a soffit occurs.
