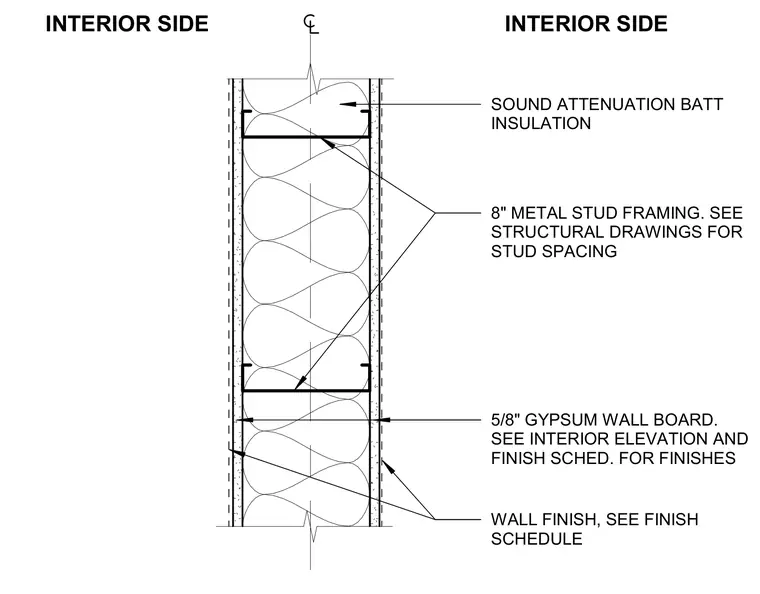

An interior partition wall assembly is framed with eight-inch metal studs with stud spacing sized per structural drawings. Sound attenuation batt insulation fills the cavity between the framing members. Both sides of the framing receive five-eighths-inch gypsum wall board layers. Final surface treatments and wall finishes are applied over the gypsum board per the finish schedule.
INTERIOR SIDE 8" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING SOUND ATTENUATION BATT INSULATION INTERIOR SIDE 5/8" GYPSUM WALL BOARD. SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES WALL FINISH, SEE FINISH SCHEDULE
