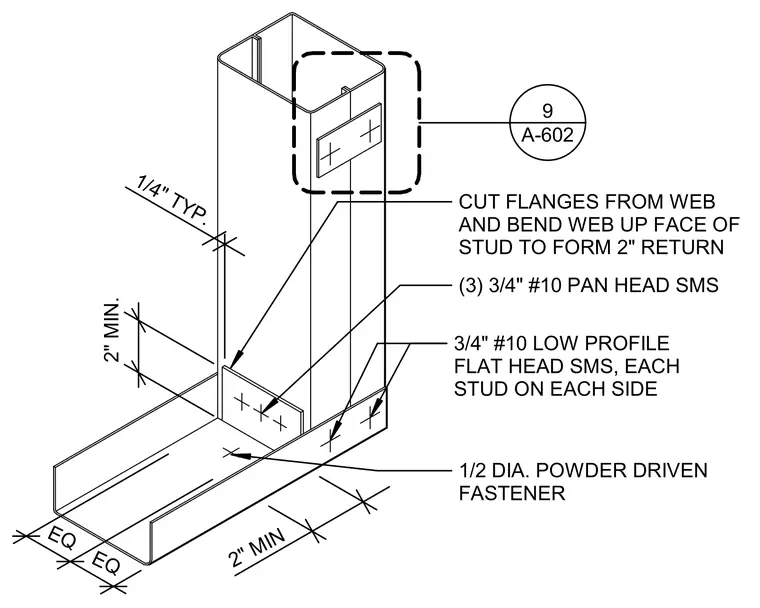

The stud flanges are cut from the web and the web is bent up to form a two-inch minimum return. Three three-quarter-inch number ten pan head sheet metal screws secure the bent tab to the adjacent member. Additional three-quarter-inch number ten low-profile flat head sheet metal screws are placed on each stud on each side. A one-half-inch diameter powder-driven fastener anchors the assembly into the substrate.
2" MIN. 2" MIN EQ EQ CUT FLANGES FROM WEB AND BEND WEB UP FACE OF STUD TO FORM 2" RETURN (3) 3/4" #10 PAN HEAD SMS 3/4" #10 LOW PROFILE FLAT HEAD SMS, EACH STUD ON EACH SIDE 1/4" TYP. 1/2 DIA. POWDER DRIVEN FASTENER A-602 9
