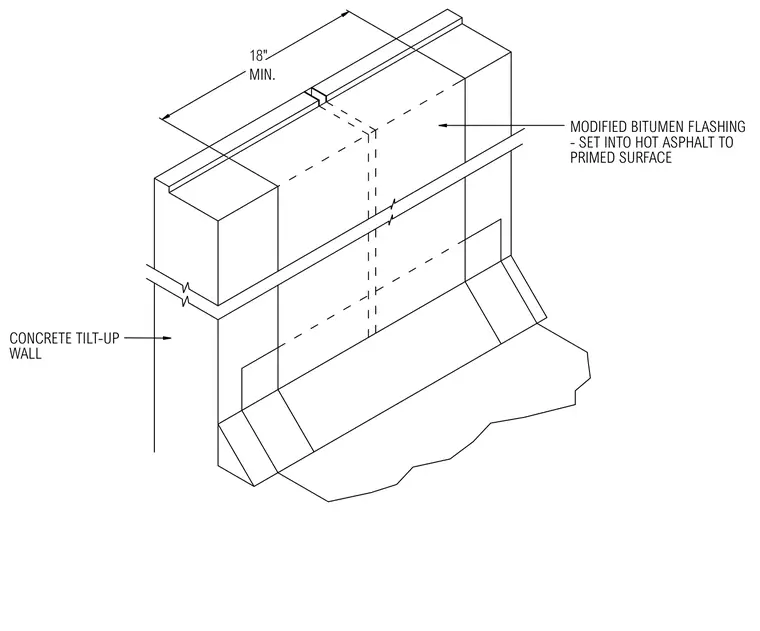

An eighteen inch minimum width modified bitumen flashing is applied over the concrete tilt-up wall. The flashing is set into hot asphalt applied to a primed concrete surface across the parapet panel joint.
18" MIN. MODIFIED BITUMEN FLASHING - SET INTO HOT ASPHALT TO PRIMED SURFACE CONCRETE TILT-UP WALL
