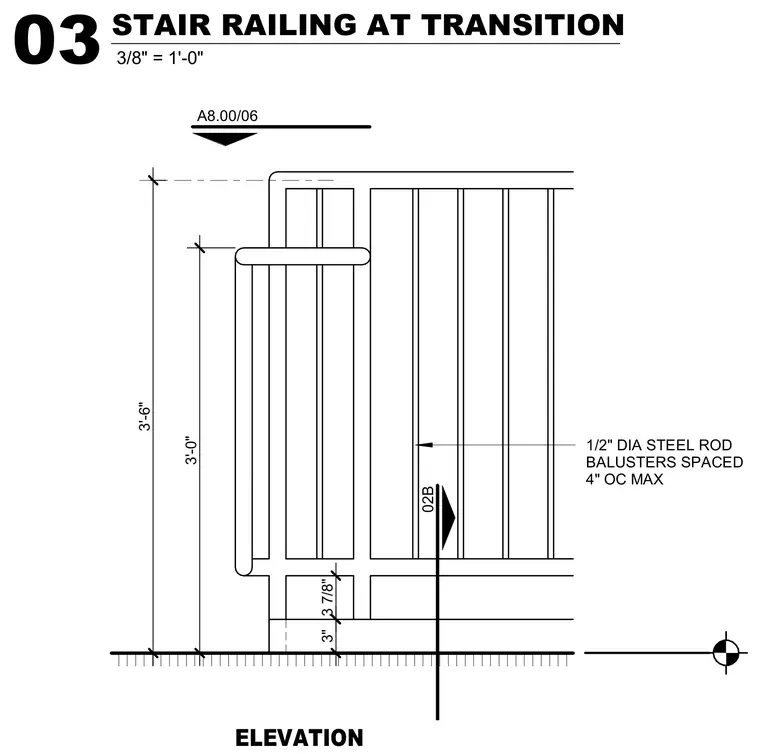

Steel stair railing transition showing one-half inch diameter steel rod balusters spaced at four inches on center maximum. The guardrail stands at three feet six inches above the finished floor, with an intermediate handrail height of three feet zero inches. The assembly includes vertical supports spaced with three-inch and three and seven-eighths inch clearances.
3" 3 7/8" 1/2" DIA STEEL ROD BALUSTERS SPACED 4" OC MAX 3'-0" 3'-6" A8.00/06 02B ELEVATION 3/8" = 1'-0" 03 STAIR RAILING AT TRANSITION
