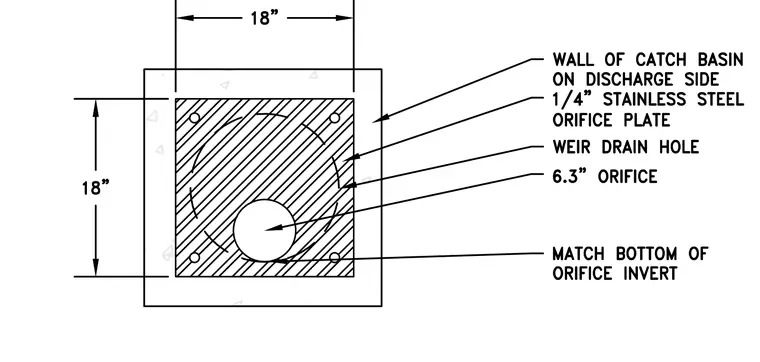

A quarter-inch stainless steel orifice plate is installed against the concrete wall of a catch basin on the discharge side. The assembly features an eighteen-inch by eighteen-inch square profile with four corner mounting locations. A six-inch and three-tenths orifice opening is positioned near the bottom, matching the invert level. An additional weir drain hole is provided adjacent to the primary opening for controlled flow management.
18” WALL OF CATCH BASIN ON DISCHARGE SIDE 1/4” STAINLESS STEEL ORIFICE PUTE WEIR DRAIN HOLE 6.3” ORIFICE 17; 18” 2 MATCH BOTTOM OF ORIFICE INVERT
