Light Fixture and Unistrut Framing Above Linear Wood Ceiling

Materials

Elements

About this detail

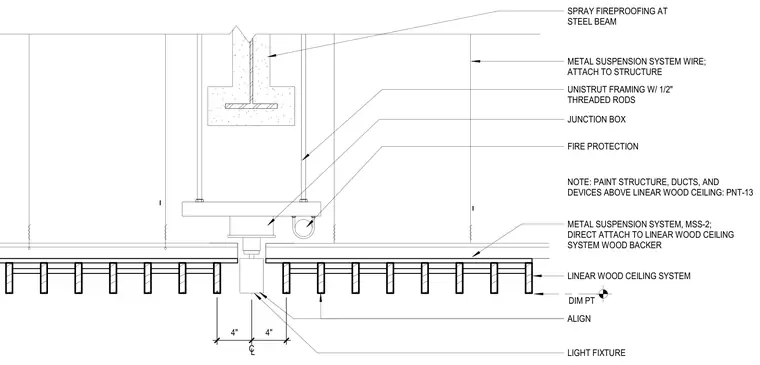

Attachment of a light fixture and junction box above a linear wood ceiling system, suspended from a structural steel beam coated with spray fireproofing. Metal suspension wires attach the ceiling system to the overhead structure. Unistrut framing supported by half-inch threaded rods carries the light fixture and junction box components. A note specifies that all structure, ducts, and devices above the linear wood ceiling are to be painted with finish PNT-13.
