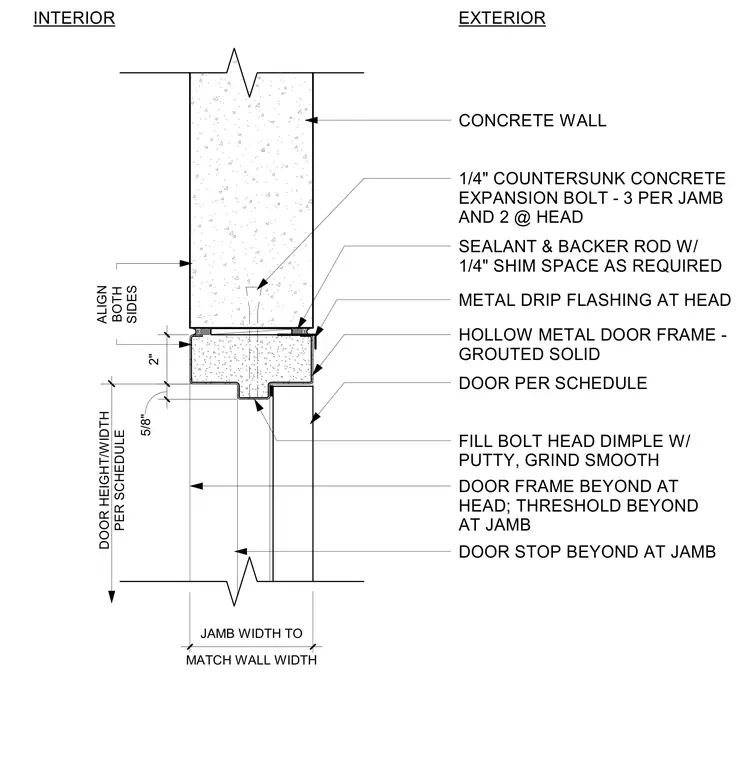

A hollow metal door frame is set into a concrete wall opening and anchored with one-quarter-inch countersunk concrete expansion bolts, using three bolts per jamb and two at the head. A one-quarter-inch shim space is provided as required, sealed with a backer rod and sealant on the exterior side. A metal drip flashing is installed at the head. The hollow metal frame is grouted solid, with the bolt head dimples filled with putty and ground smooth.
5/8" 2" MATCH WALL WIDTH JAMB WIDTH TO DOOR HEIGHT/WIDTH PER SCHEDULE METAL DRIP FLASHING AT HEAD HOLLOW METAL DOOR FRAME - GROUTED SOLID DOOR PER SCHEDULE DOOR FRAME BEYOND AT HEAD; THRESHOLD BEYOND AT JAMB CONCRETE WALL 1/4" COUNTERSUNK CONCRETE EXPANSION BOLT - 3 PER JAMB AND 2 @ HEAD SEALANT & BACKER ROD W/ 1/4" SHIM SPACE AS REQUIRED FILL BOLT HEAD DIMPLE W/ PUTTY, GRIND SMOOTH EXTERIOR INTERIOR ALIGN BOTH SIDES DOOR STOP BEYOND AT JAMB
