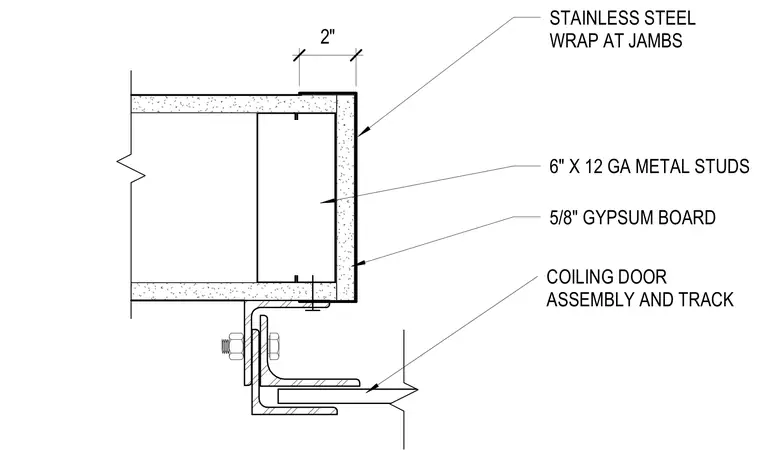

The coiling door assembly and track attach to a steel angle connection at the jamb. The jamb wall consists of six-inch twelve-gauge metal studs framed with five-eighths-inch gypsum board. A stainless steel wrap clads the jamb edge for a two-inch return.
COILING DOOR ASSEMBLY AND TRACK 5/8" GYPSUM BOARD 6" X 12 GA METAL STUDS STAINLESS STEEL WRAP AT JAMBS 2"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
