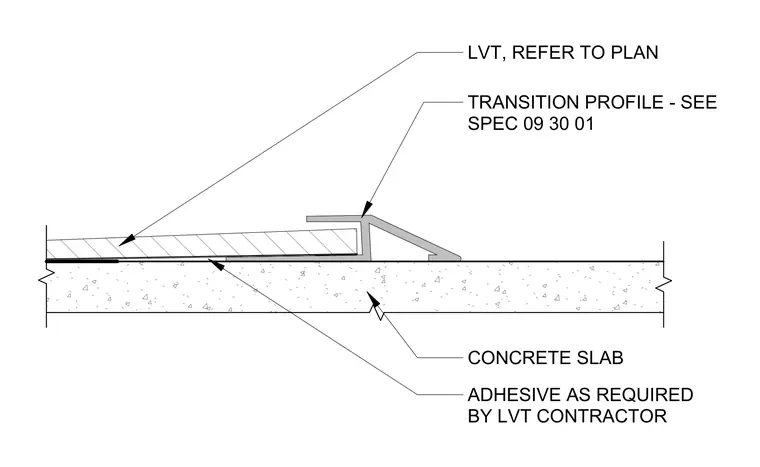

Luxury vinyl tile is adhered directly to a concrete slab using adhesive as required by the flooring contractor. A transition profile is provided at the edge of the luxury vinyl tile per specification 09 30 01. The flooring layout and specific transition locations are coordinated per the architectural floor plans.
CONCRETE SLAB LVT, REFER TO PLAN TRANSITION PROFILE - SEE SPEC 09 30 01 ADHESIVE AS REQUIRED BY LVT CONTRACTOR
