Firestopping

Units: imperial
Sheet: RA-T2.1.2
Discipline: Architectural

Materials

Metal (misc.)

Elements

Floors / Slabs Walls

Text on the drawing

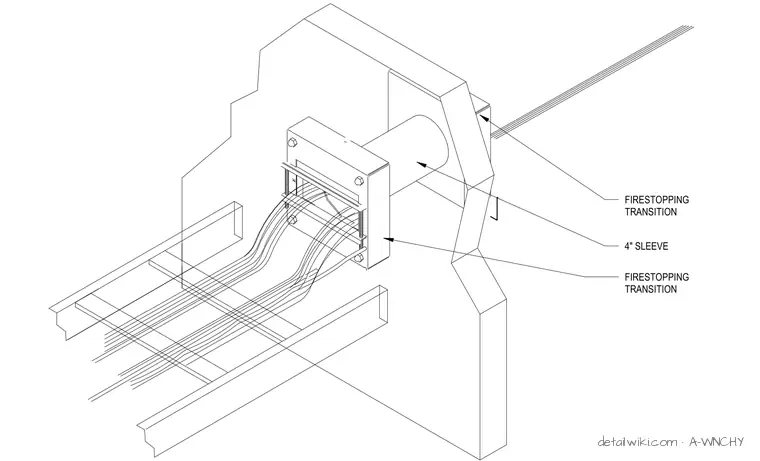

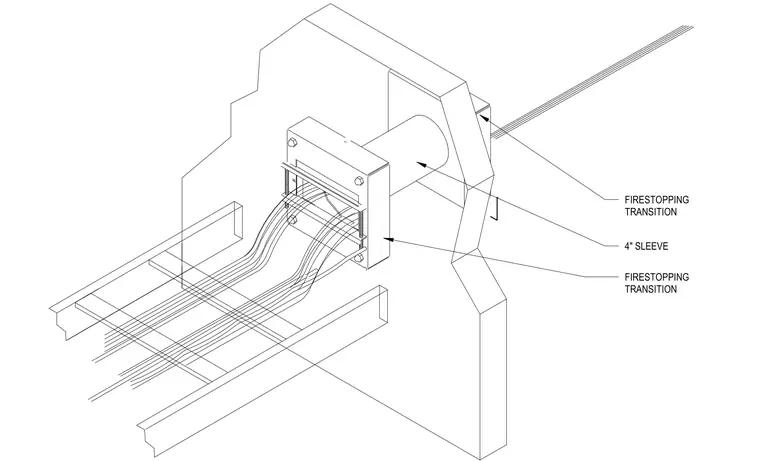

FIRESTOPPING TRANSITION 4" SLEEVE FIRESTOPPING TRANSITION
