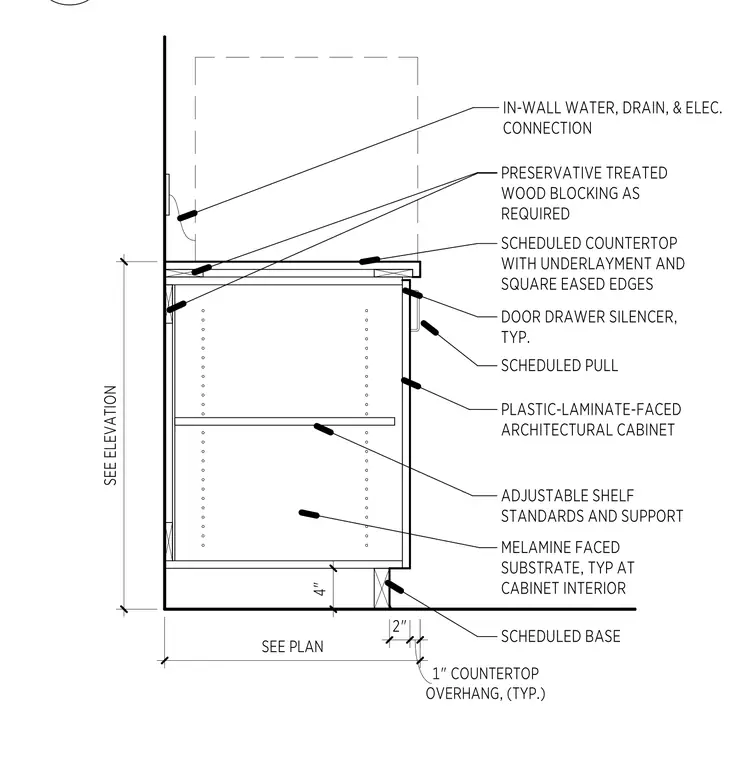

This base cabinet assembly features a plastic-laminate-faced architectural cabinet with a melamine-faced interior substrate and adjustable shelf standards. The unit is secured to the wall with preservative-treated wood blocking as required, which also accommodates in-wall water, drain, and electrical connections. The countertop includes an underlayment with square eased edges and a typical one-inch overhang. The cabinet base is four inches high, and the door and drawer fronts are equipped with typical silencers and scheduled pulls.
