A precast concrete wheel stop rests directly on asphalt paving and is secured with sixteen millimeter by six-hundred millimeter long steel dowels spaced at twelve-hundred millimeters on center. The detail indicates a typical vehicle overhang dimension of three-hundred-ten millimeters minimum from the front face of the parking stall. The underlying asphalt paving layers and sub-base are coordinated per civil drawings.

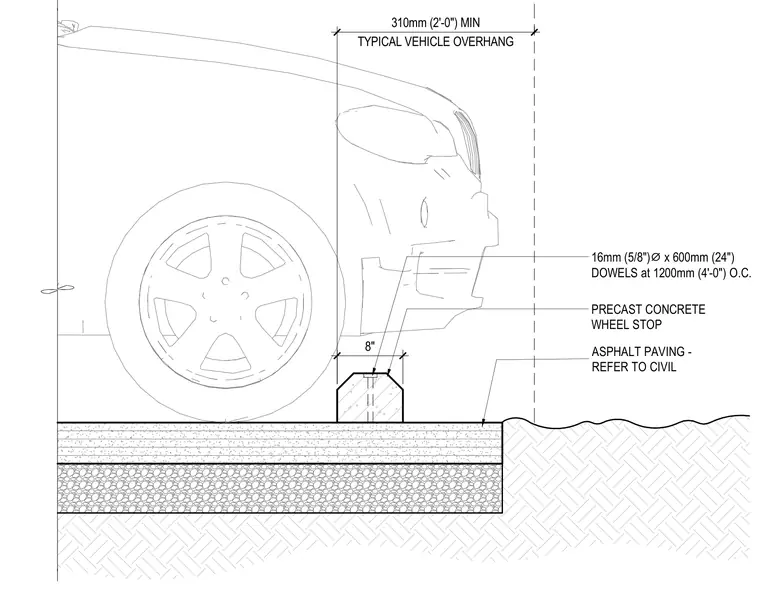

PRECAST CONCRETE WHEEL STOP 16mm (5/8") ⌀ x 600mm (24") DOWELS at 1200mm (4'-0") O.C. 8" TYPICAL VEHICLE OVERHANG 310mm (2'-0") MIN ASPHALT PAVING - REFER TO CIVIL
