Pre-finished aluminum curtain wall system with one-inch insulated glazing transitions to a brick veneer over cold-formed steel stud framing at the window jamb. Window opening is wrapped with a self-adhered flashing over a fluid-applied air and vapor barrier applied directly to five-eighths-inch exterior gypsum sheathing. Stud cavity is fully filled with six inches of spray-applied closed cell thermal insulation, supplemented by two and a half inches of rigid cavity insulation. A three-quarter-inch dual stage sealant joint with a backer rod seals the perimeter between the aluminum frame and the masonry, while a perimeter caulk joint finishes the interior gypsum board and metal stud junction.

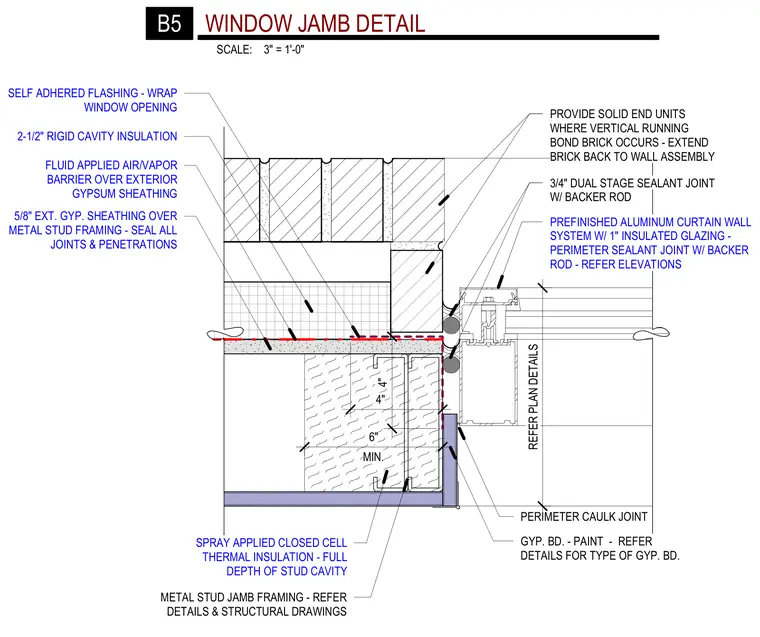

3/4" DUAL STAGE SEALANT JOINT W/ BACKER ROD METAL STUD JAMB FRAMING - REFER DETAILS & STRUCTURAL DRAWINGS GYP. BD. - PAINT - REFER DETAILS FOR TYPE OF GYP. BD. PERIMETER CAULK JOINT PREFINISHED ALUMINUM CURTAIN WALL SYSTEM W/ 1" INSULATED GLAZING - PERIMETER SEALANT JOINT W/ BACKER ROD - REFER ELEVATIONS PROVIDE SOLID END UNITS WHERE VERTICAL RUNNING BOND BRICK OCCURS - EXTEND BRICK BACK TO WALL ASSEMBLY 4" 4" MIN. 6" SPRAY APPLIED CLOSED CELL THERMAL INSULATION - FULL DEPTH OF STUD CAVITY 5/8" EXT. GYP. SHEATHING OVER METAL STUD FRAMING - SEAL ALL JOINTS & PENETRATIONS FLUID APPLIED AIR/VAPOR BARRIER OVER EXTERIOR GYPSUM SHEATHING 2-1/2" RIGID CAVITY INSULATION REFER PLAN DETAILS SELF ADHERED FLASHING - WRAP WINDOW OPENING SCALE: 3" = 1'-0" B5 WINDOW JAMB DETAIL
