Architectural · A-WMSJW

Light Fixture Bracing

Elements

About this detail

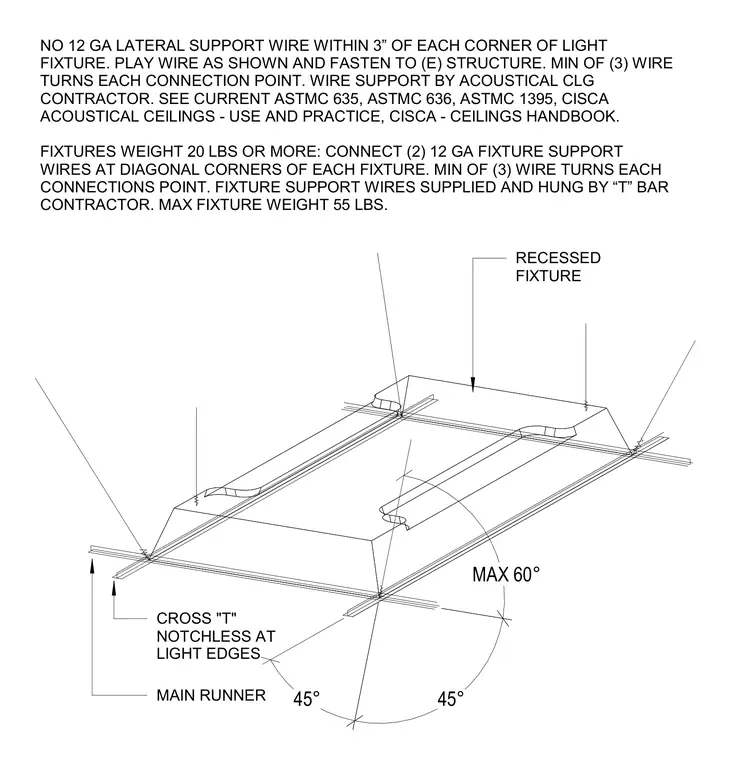

Number 12 gauge lateral support wires are positioned within 3 inches of each fixture corner, splayed at angles between 45 and 60 degrees, and fastened to the existing structure. Each connection point requires a minimum of three wire turns. For fixtures weighing 20 pounds or more up to a maximum of 55 pounds, two 12 gauge fixture support wires are connected at diagonal corners. The main runner and cross tee members feature notchless configurations at light edges to accommodate the fixture within the grid system.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
