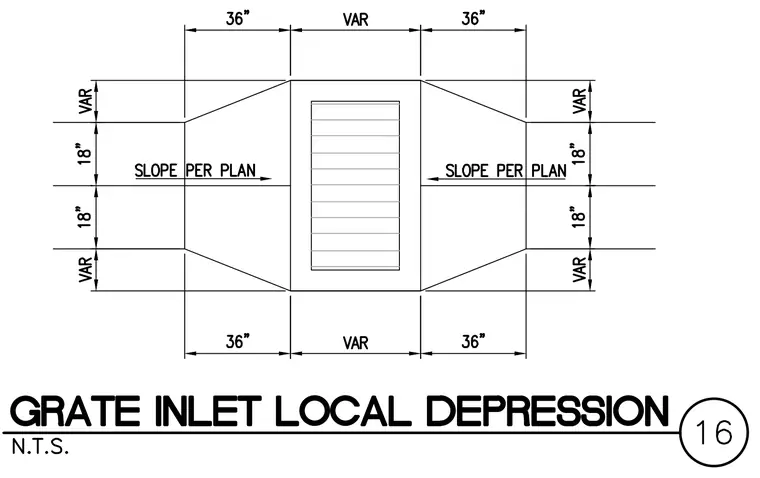

A grate inlet features a local depression layout with transitional slopes on each side. The central grate is framed by variable dimensions and eighteen-inch offsets, flanked by thirty-six-inch transition zones that taper to variable widths. Slopes leading into the inlet are designated as per plan.
