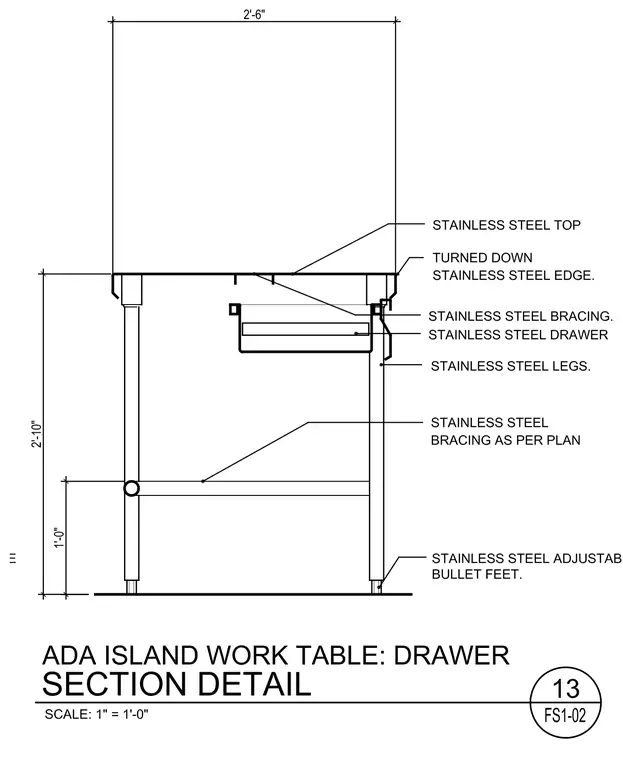

This section detail shows a stainless steel work table equipped with an integrated drawer and tubular legs. The assembly features a stainless steel top with turned-down edges supported by stainless steel bracing underneath. Stainless steel legs extend downward and include intermediate horizontal bracing as per plan, terminating in stainless steel adjustable bullet feet.
