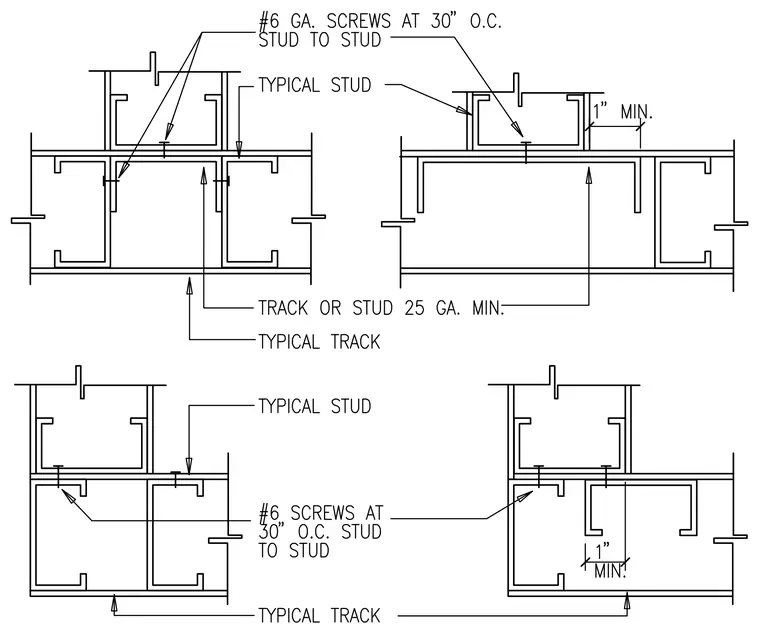

Cold-formed steel stud intersections and corner configurations utilize typical studs and a twenty-five gauge minimum track or stud. Intersecting members are fastened stud to stud using number six gauge screws at thirty inches on center. Corner details specify a one-inch minimum dimension for alignment. Typical tracks and studs form the continuous perimeter framing.
