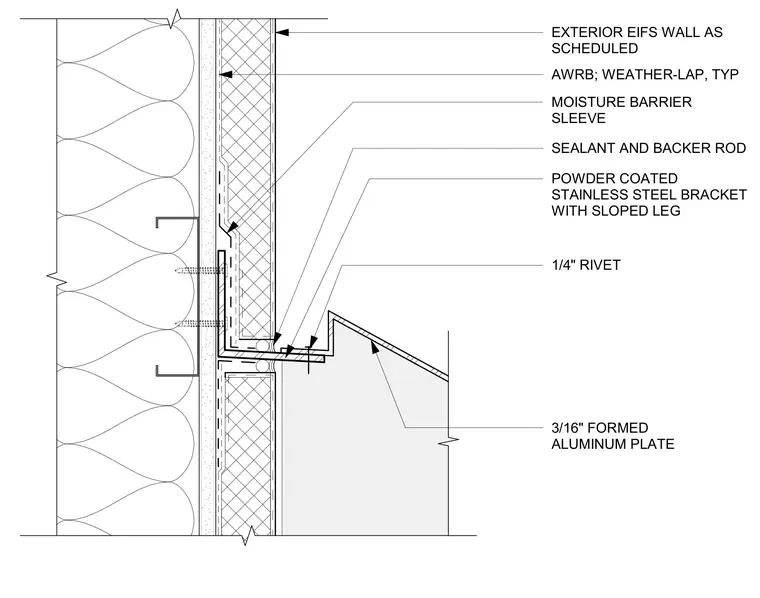

A powder-coated stainless steel bracket with a sloped leg is anchored through an exterior EIFS wall as scheduled. A moisture barrier sleeve surrounds the penetration, backed by sealant and backer rod at the joint. A three-sixteenths-inch formed aluminum plate secures to the bracket using one-quarter-inch rivets. An air-water-resistive barrier features typical weather-lapping behind the assembly.
EXTERIOR EIFS WALL AS SCHEDULED 3/16" FORMED ALUMINUM PLATE POWDER COATED STAINLESS STEEL BRACKET WITH SLOPED LEG 1/4" RIVET AWRB; WEATHER-LAP, TYP MOISTURE BARRIER SLEEVE SEALANT AND BACKER ROD
