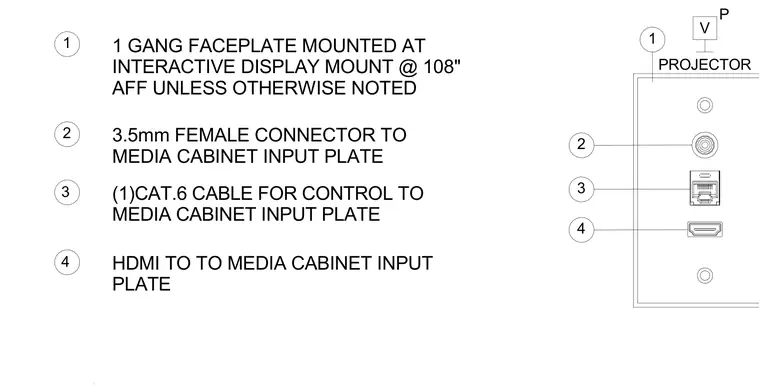

A single-gang faceplate is mounted at the interactive display mount at one hundred eight inches above finished floor unless noted otherwise. The assembly includes a 3.5mm female audio connector routed to the media cabinet input plate. A Category 6 cable provides control signals to the media cabinet input plate. An HDMI connection links the projector to the media cabinet input plate.
1 2 3 2 1 3 4 4 1 GANG FACEPLATE MOUNTED AT INTERACTIVE DISPLAY MOUNT @ 108" AFF UNLESS OTHERWISE NOTED (1)CAT.6 CABLE FOR CONTROL TO MEDIA CABINET INPUT PLATE 3.5mm FEMALE CONNECTOR TO MEDIA CABINET INPUT PLATE HDMI TO TO MEDIA CABINET INPUT PLATE PROJECTOR V P
