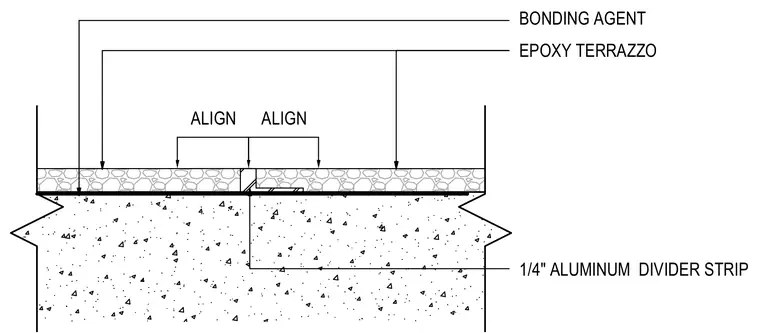

An epoxy terrazzo flooring assembly featuring a one-quarter-inch aluminum divider strip set flush with the finish floor. The terrazzo topping is applied over a bonding agent adhered directly to the concrete substrate. Alignment notes indicate the precise positioning required between adjacent terrazzo panels at the metal strip.
