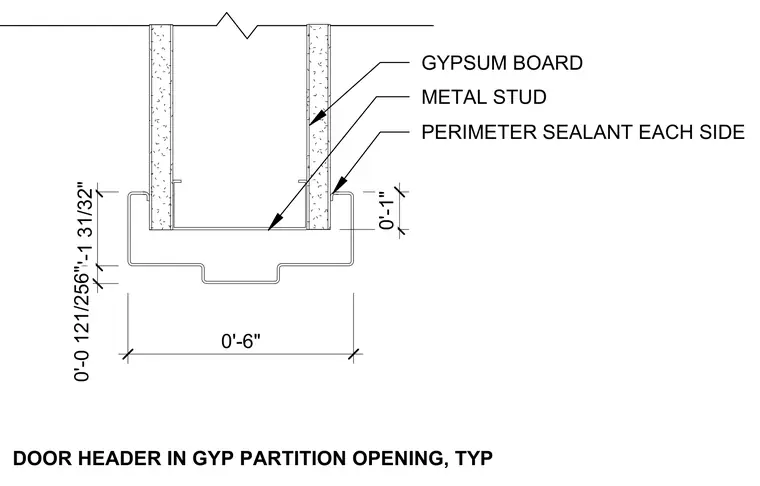

A hollow metal door header is framed within a cold-formed metal stud partition finished with gypsum board on both sides. Perimeter sealant is applied at the joints on each side of the frame. The assembly features dimensioned clearances including a 6-inch opening width.
0'-6" 0'-1 31/32" 0'-0 121/256" 0'-1" PERIMETER SEALANT EACH SIDE METAL STUD GYPSUM BOARD DOOR HEADER IN GYP PARTITION OPENING, TYP
