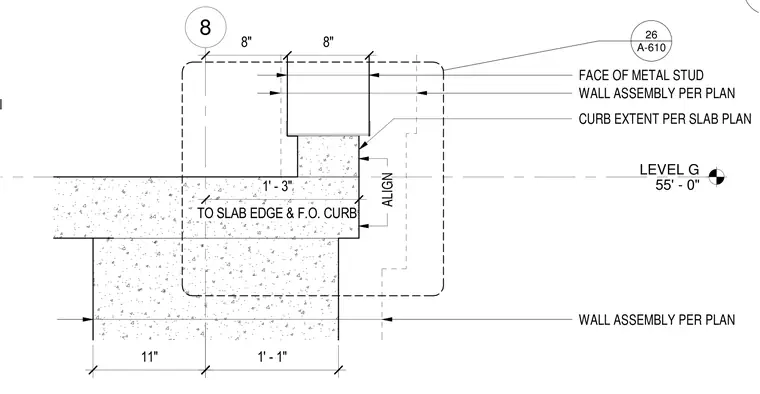

A concrete curb forms on a concrete floor slab at Level G 55'-0". A cold-formed metal stud wall aligns with the curb face and slab edge per plan dimensions. Dimensions indicate an eleven-inch offset to the slab edge and a one-foot three-inch offset to the face of the curb.
CURB WHERE OCCURS PER SLAB PLAN LEVEL G 55' - 0" 8 A-610 26 1' - 1" 11" TO SLAB EDGE & F.O. CURB 1' - 3" ALIGN WALL ASSEMBLY PER PLAN 8" 8" WALL ASSEMBLY PER PLAN FACE OF METAL STUD CURB EXTENT PER SLAB PLAN 15
