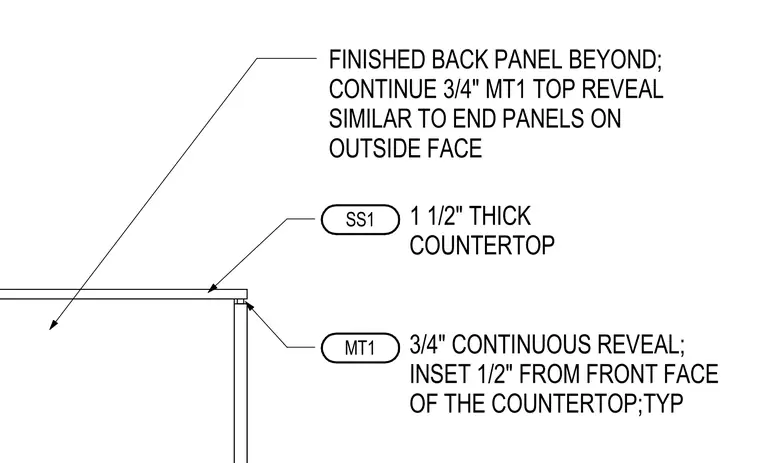

A one and one-half inch thick solid surface countertop designated as SS1 sits above a millwork support panel with a three-quarter inch continuous reveal designated as MT1. The reveal is inset one-half inch from the front face of the countertop. A finished back panel is located beyond the front assembly. The three-quarter inch top reveal continues similar to the end panels on the outside face.
SS1 MT1 1 1/2" THICK COUNTERTOP 3/4" CONTINUOUS REVEAL; INSET 1/2" FROM FRONT FACE OF THE COUNTERTOP;TYP FINISHED BACK PANEL BEYOND; CONTINUE 3/4" MT1 TOP REVEAL SIMILAR TO END PANELS ON OUTSIDE FACE
