Scheduled wood plank walls meet at an outside corner with mitered joints over scheduled framing. A TD-21 wood panel outside corner key profile ties the intersection together with a three-sixteenths inch dimension clearance. Fasteners secure the wood panels and framing layers in place.

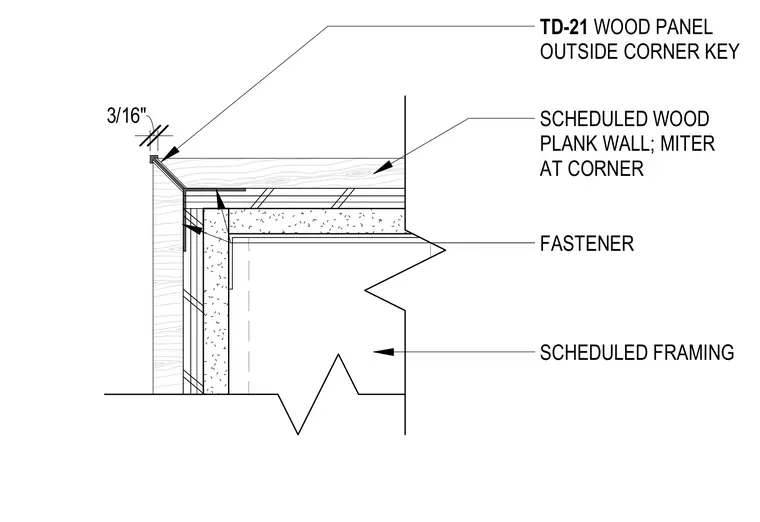

SCHEDULED WOOD PLANK WALL; MITER AT CORNER FASTENER TD-21 WOOD PANEL OUTSIDE CORNER KEY SCHEDULED FRAMING 3/16"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
