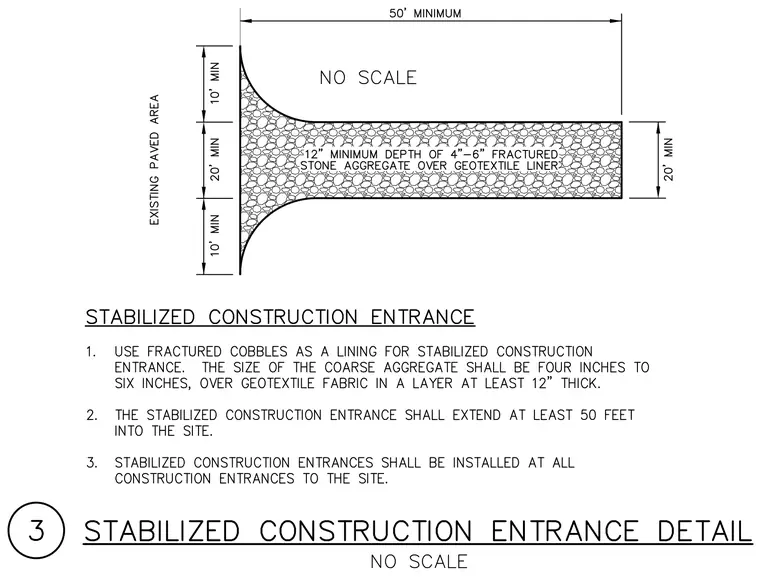

A stabilized construction entrance extends at least fifty feet into the site from the existing paved area. The entrance width measures twenty feet minimum, flaring out to fifty feet minimum at the connection to existing pavement. The assembly consists of a twelve-inch minimum depth of four-inch to six-inch fractured stone aggregate placed over a geotextile liner. Fractured cobbles line the entrance to prevent sediment tracking onto public roads.
