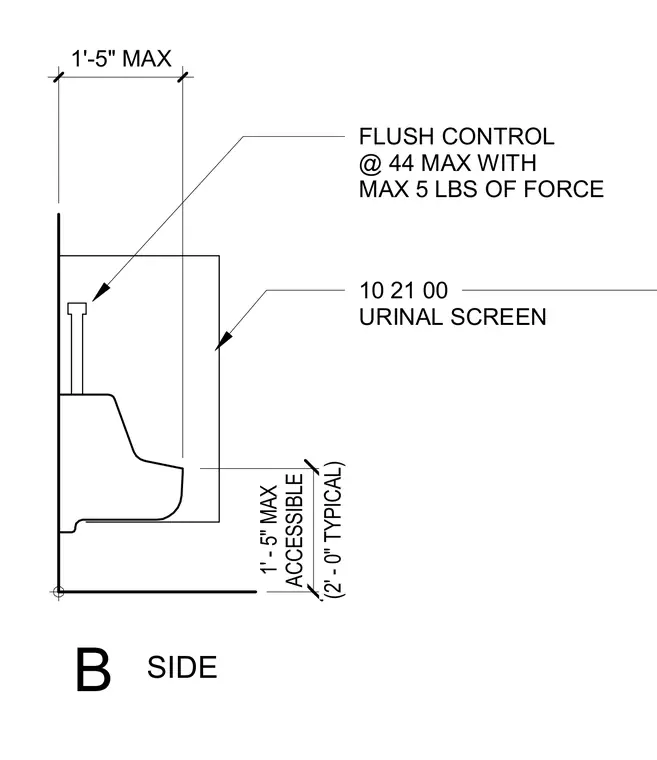

An accessible urinal screen installation shows the flush control positioned at a maximum height of forty-four inches with a maximum operating force of five pounds. The screen extends one foot five inches maximum from the wall. The centerline of the urinal is dimensioned at one foot five inches maximum for accessible compliance, with two feet zero inches typical.
B SIDE 1'-5" MAX (2' - 0" TYPICAL) 1' - 5" MAX ACCESSIBLE 10 21 00 URINAL SCREEN FLUSH CONTROL @ 44 MAX WITH MAX 5 LBS OF FORCE
