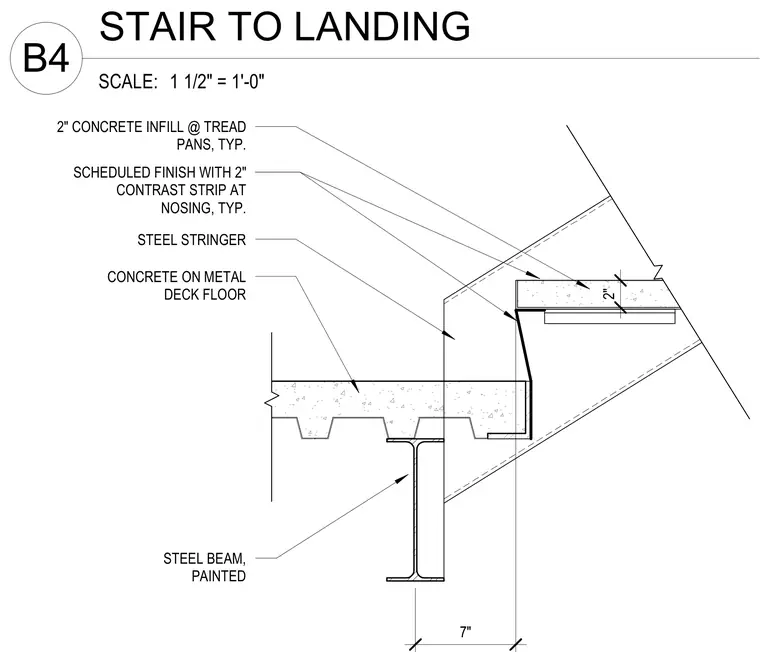

A steel stair stringer ties into a concrete-filled metal deck floor slab supported by a painted steel beam. The stair treads consist of two inches of concrete infill inside typical steel pans with a scheduled finish and a two-inch contrast strip at the nosing.
STEEL STRINGER 2" CONCRETE INFILL @ TREAD PANS, TYP. SCHEDULED FINISH WITH 2" CONTRAST STRIP AT NOSING, TYP. 2" CONCRETE ON METAL DECK FLOOR STEEL BEAM, PAINTED 7" SCALE: 1 1/2" = 1'-0" B4 STAIR TO LANDING
