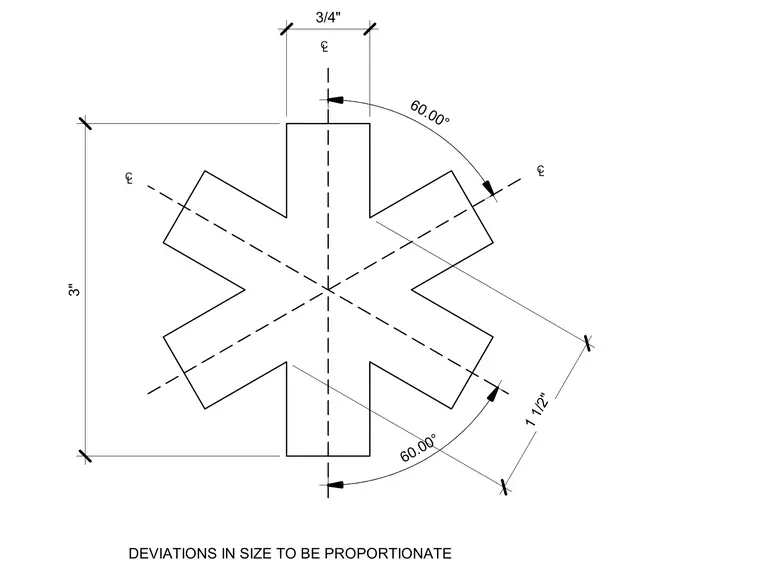

The Star of Life signage geometry detail defines the proportional dimensions and centerline angles for the emblem. The overall height measures three inches with a three-quarter inch top width and centerlines spaced at sixty-degree radial increments. Branch extensions measure one and one-half inches with proportional scaling permitted for size deviations.
