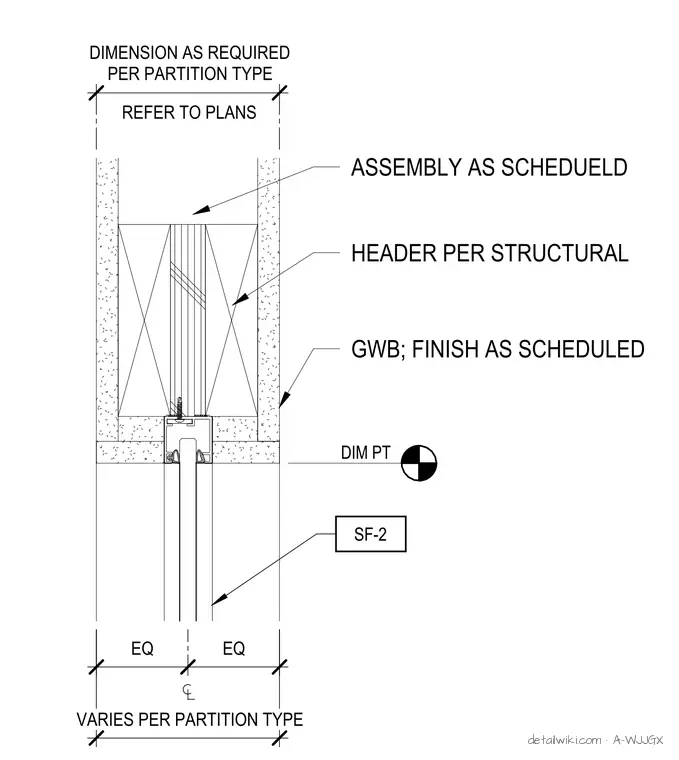

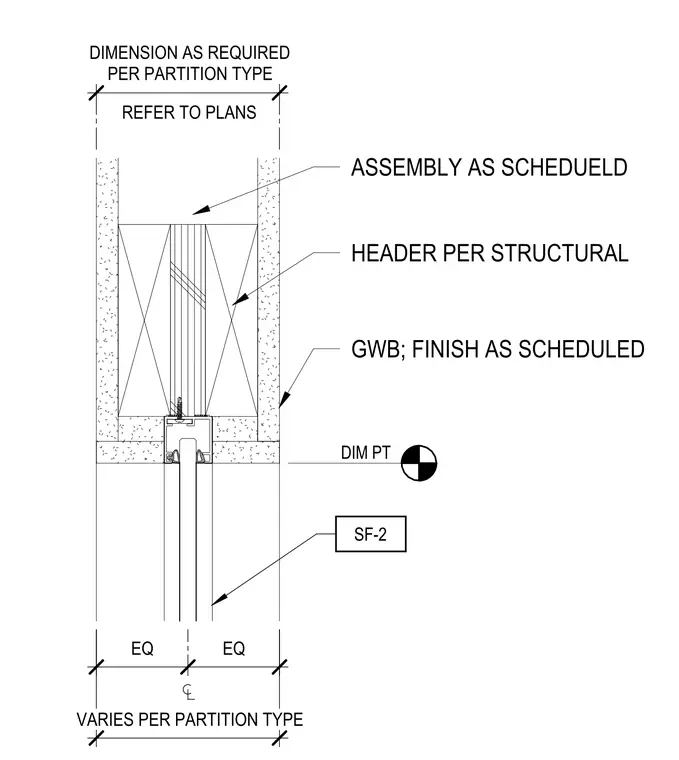

Gypsum wall board partition with finish as scheduled on both sides. Structural header installed above the door opening, sized per structural requirements. Door frame SF-2 centered within the partition opening with equal spacing on either side. Gypsum wall board terminates at the door frame; overall partition width dimensioned per specific partition type.
