Suspended ceiling hanger wires and splayed seismic bracing wires are anchored to structural steel members and metal decks using specialized clips and steel straps. At steel beams, ceiling clips and steel straps attach to the beam flanges with fireproofing patched where removed for clip installation. Alternate deck attachment methods accommodate eighteen-gauge minimum metal decks using direct hanger clip attachment, or twenty-gauge minimum decks using a three-inch wide by twelve-gauge minimum steel strap secured with two number ten by one-half-inch self-tapping screws. An alternate hanger wire attachment wraps around a number three by twelve-inch long rebar embedded in the concrete deck with three wraps around the rebar and one wrap around the wire. Vertical hanger wires and splayed seismic bracing wires maintain required clearances and seismic restraint.

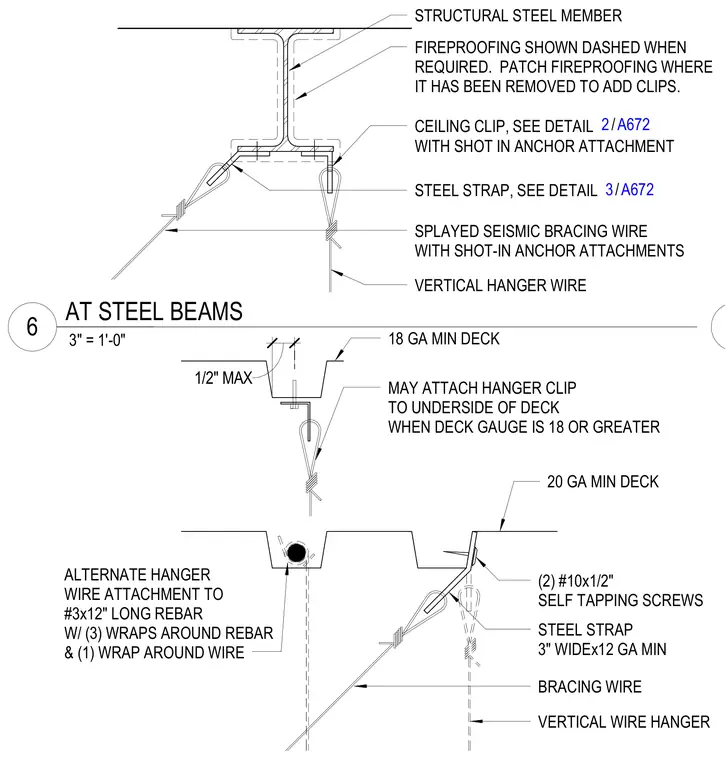

VERTICAL WIRE HANGER BRACING WIRE STEEL STRAP 3" WIDEx12 GA MIN (2) #10x1/2" SELF TAPPING SCREWS 20 GA MIN DECK ALTERNATE HANGER WIRE ATTACHMENT TO #3x12" LONG REBAR W/ (3) WRAPS AROUND REBAR & (1) WRAP AROUND WIRE MAY ATTACH HANGER CLIP TO UNDERSIDE OF DECK WHEN DECK GAUGE IS 18 OR GREATER 18 GA MIN DECK 1/2" MAX VERTICAL HANGER WIRE SPLAYED SEISMIC BRACING WIRE WITH SHOT-IN ANCHOR ATTACHMENTS STEEL STRAP, SEE DETAIL CEILING CLIP, SEE DETAIL WITH SHOT IN ANCHOR ATTACHMENT FIREPROOFING SHOWN DASHED WHEN REQUIRED. PATCH FIREPROOFING WHERE IT HAS BEEN REMOVED TO ADD CLIPS. STRUCTURAL STEEL MEMBER / 2 A672 / 3 A672 3" = 1'-0" 6 AT STEEL BEAMS
