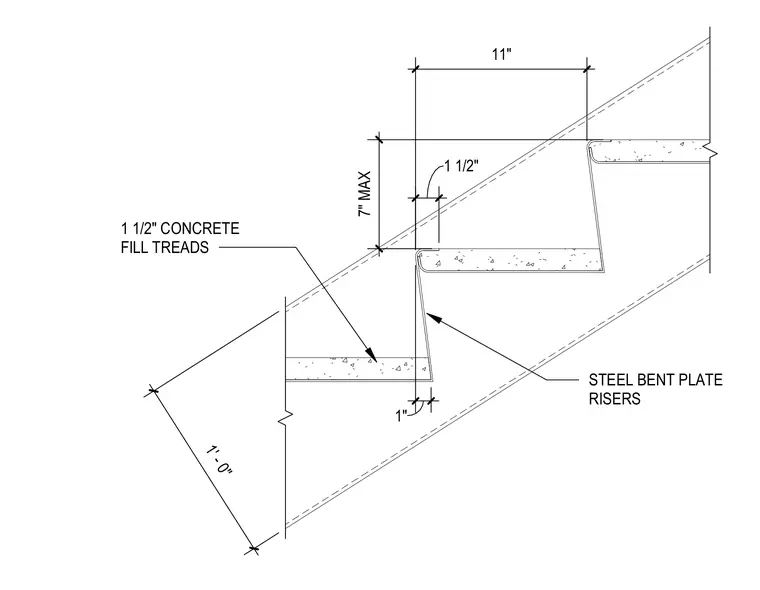

Concrete fill treads are supported by steel bent plate risers with an eleven-inch tread run and a maximum seven-inch riser height. Each tread features a one-and-one-half-inch concrete fill thickness. Dimensions specify standard stair geometry including one-foot diagonal runs and one-inch detailing.
