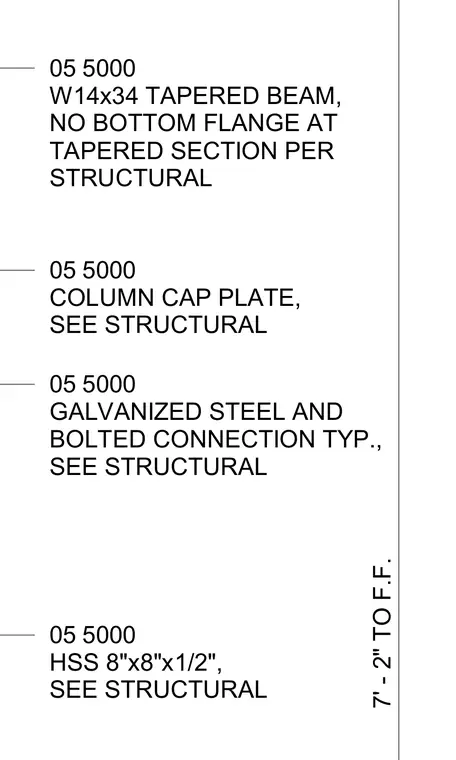

A W14x34 tapered beam connects to an HSS 8-inch by 8-inch by 1/2-inch hollow structural section column via a column cap plate and a galvanized steel bolted connection. The tapered beam features no bottom flange at the tapered section per structural requirements. The assembly sits at 7 feet 2 inches to finished floor.
05 5000 HSS 8"x8"x1/2", SEE STRUCTURAL 05 5000 W14x34 TAPERED BEAM, NO BOTTOM FLANGE AT TAPERED SECTION PER STRUCTURAL 7' - 2" TO F.F. 05 5000 COLUMN CAP PLATE, SEE STRUCTURAL 05 5000 GALVANIZED STEEL AND BOLTED CONNECTION TYP., SEE STRUCTURAL
