Architectural · A-WJ72D

Accessible Diagonal Corner Curb Ramp

Elements

About this detail

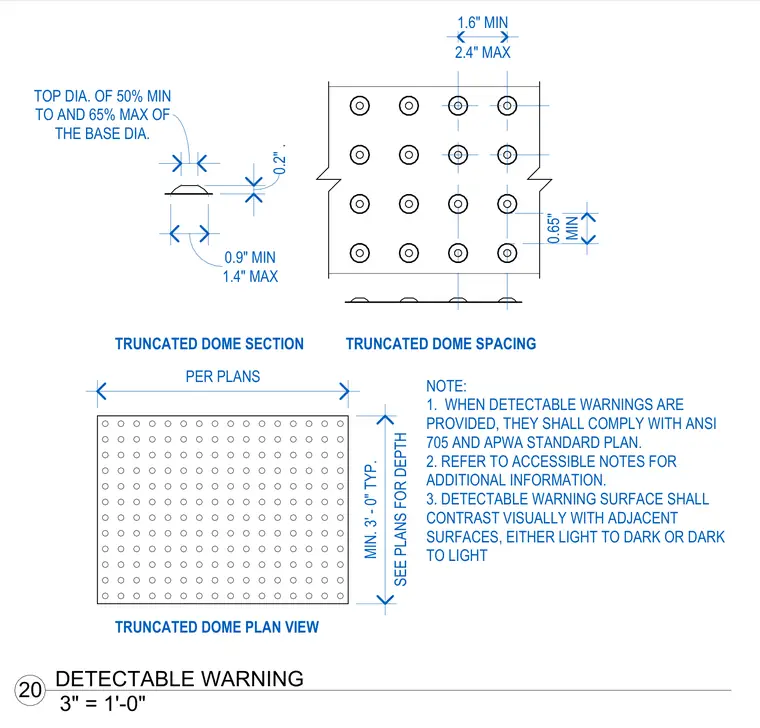

Detectable warning surface details show the dimensional requirements for truncated domes on accessible curb ramps and walking surfaces. Individual truncated domes feature a base diameter ranging from 0.9 inches minimum to 1.4 inches maximum, a top diameter between 50 percent minimum and 65 percent maximum of the base diameter, and a height of 0.2 inches. Dome spacing is dimensioned with 1.6 inches minimum to 2.4 inches maximum center-to-center spacing, and 0.65 inches minimum spacing in the orthogonal direction. The warning surface has a standard depth of 3 feet typical per plans and requires visual contrast with adjacent walking surfaces, complying with ANSI 705 and APWA standards.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
