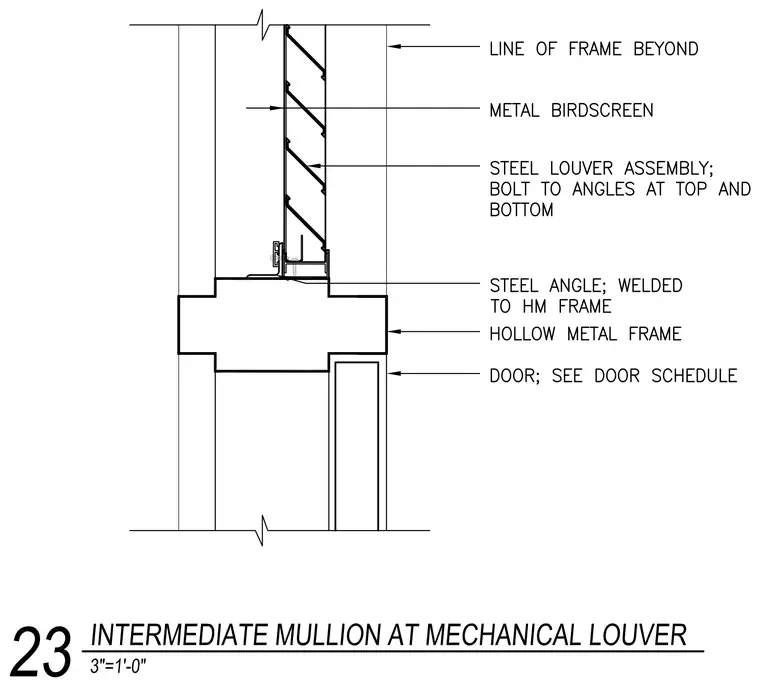

A steel louver assembly with a metal birdscreen is bolted to steel angles at the top and bottom. The steel angle is welded to the hollow metal frame. The door below is sized per the door schedule, and the line of the frame extends beyond the assembly.
