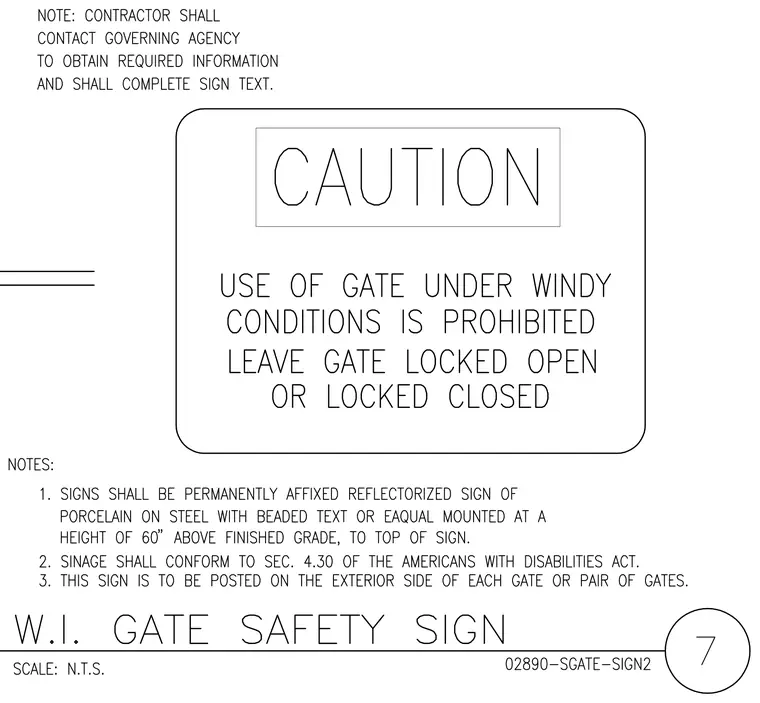

This drawing outlines the requirements for a gate safety sign prohibiting gate use under windy conditions and requiring the gate to be left locked open or closed. The sign must be permanently affixed as a reflectorized sign of porcelain on steel with beaded text, mounted at a height of 60 inches above finished grade to the top of the sign. Signage must conform to Section 4.30 of the Americans with Disabilities Act. The sign is to be posted on the exterior side of each gate or pair of gates, and the contractor must contact the governing agency to obtain required information and complete the sign text.
