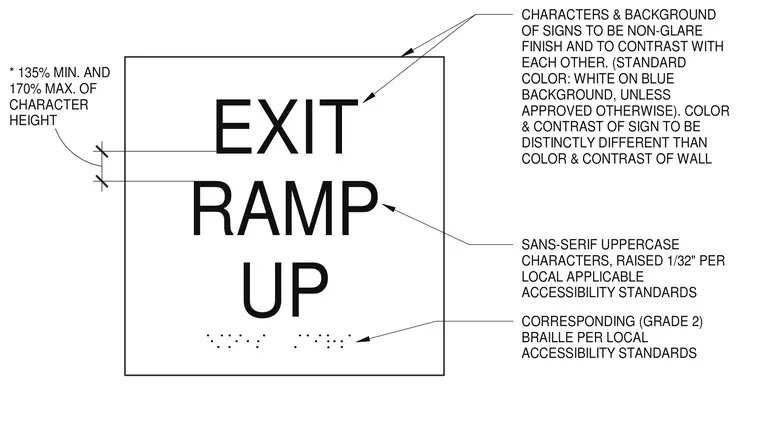

This interior signage detail specifies an ADA-compliant tactile sign reading 'EXIT RAMP UP' with corresponding Grade 2 braille. The uppercase sans-serif characters are raised 1/32 inch above the background surface. Character height dimensions require spacing between 135 percent minimum and 170 percent maximum of the character height. Both characters and background feature a non-glare finish with distinct color contrast from each other and the adjacent wall, typically specified as white text on a blue background.
EXIT RAMP UP * 135% MIN. AND 170% MAX. OF CHARACTER HEIGHT CORRESPONDING (GRADE 2) BRAILLE PER LOCAL ACCESSIBILITY STANDARDS SANS-SERIF UPPERCASE CHARACTERS, RAISED 1/32" PER LOCAL APPLICABLE ACCESSIBILITY STANDARDS CHARACTERS & BACKGROUND OF SIGNS TO BE NON-GLARE FINISH AND TO CONTRAST WITH EACH OTHER. (STANDARD COLOR: WHITE ON BLUE BACKGROUND, UNLESS APPROVED OTHERWISE). COLOR & CONTRAST OF SIGN TO BE DISTINCTLY DIFFERENT THAN COLOR & CONTRAST OF WALL
