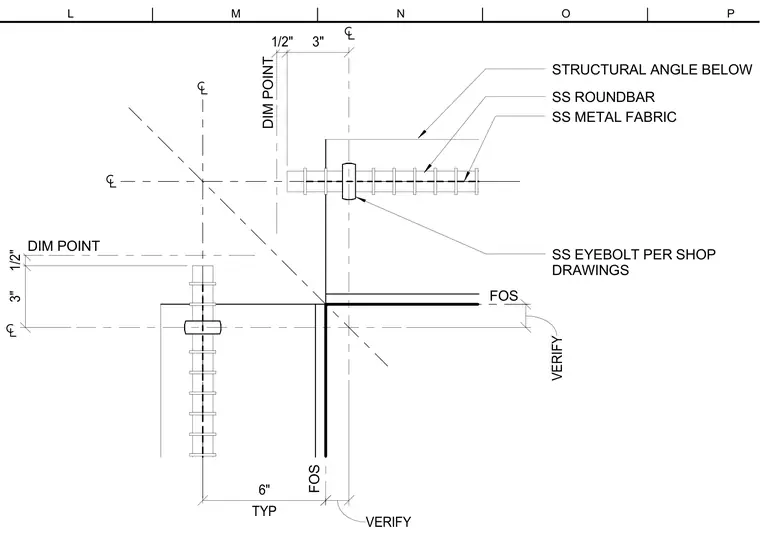

A stainless steel metal fabric corner assembly featuring stainless steel round bars anchored by stainless steel eyebolts per shop drawings. A structural angle is positioned below the assembly with typical dimensions of six inches. Dimension points reference from centerlines to the face of steel.
SS METAL FABRIC SS ROUNDBAR SS EYEBOLT PER SHOP DRAWINGS FOS FOS DIM POINT DIM POINT 3" 1/2" 1/2" 3" STRUCTURAL ANGLE BELOW TYP 6" VERIFY VERIFY O N M L P
