The Bosch DS160 and DS161 passive infrared detectors mount above card reader doors with wire entrances designated for incoming connections. A 24-volt DC power supply connects to the unit alongside terminal blocks linking to the system control panel. Dip switches numbered one through ten configure operational parameters with the relay mode set to fail secure. The relay timer and sensitivity remain field determined based on specific site requirements.

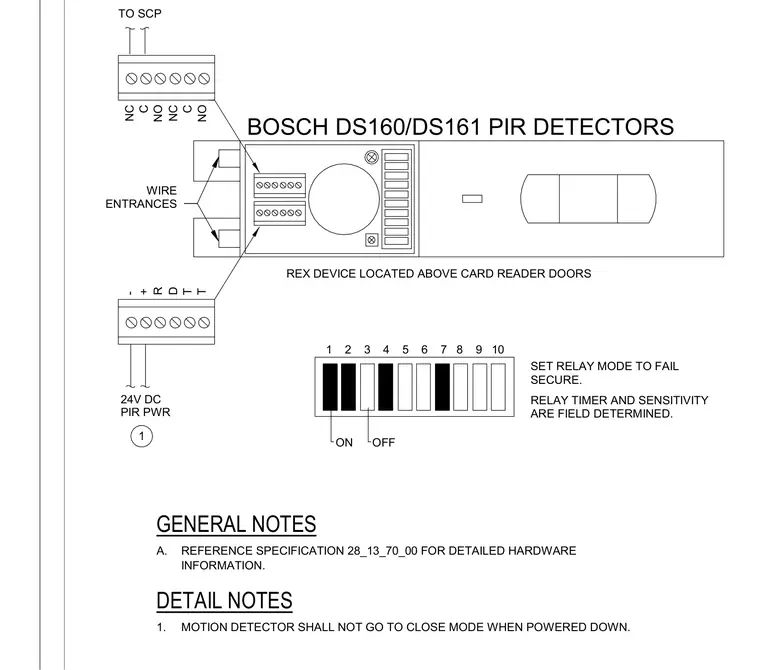

SET RELAY MODE TO FAIL SECURE. RELAY TIMER AND SENSITIVITY ARE FIELD DETERMINED. 24V DC PIR PWR - + R D T T NC C NO NC C NO TO SCP BOSCH DS160/DS161 PIR DETECTORS REX DEVICE LOCATED ABOVE CARD READER DOORS WIRE ENTRANCES 1 2 3 4 5 6 7 8 9 10 ON OFF 1 DETAIL NOTES 1. MOTION DETECTOR SHALL NOT GO TO CLOSE MODE WHEN POWERED DOWN. GENERAL NOTES A. REFERENCE SPECIFICATION 28_13_70_00 FOR DETAILED HARDWARE INFORMATION.
