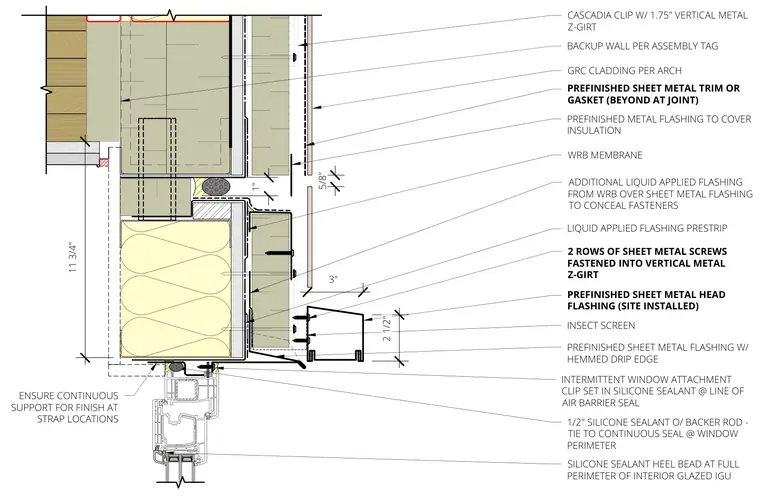

This balcony door head detail features a backup wall assembly tied to an intermittent window attachment clip set in a continuous line of silicone sealant and air barrier seal. An insulated glazed unit is installed below with a silicone sealant heel bead at the interior perimeter and a one-half-inch silicone sealant joint over a backer rod at the window perimeter. Prefinished metal head flashing with a hemmed drip edge and an insect screen ties into the assembly. The exterior is clad in glass-reinforced concrete panels supported by Cascadia clips and one-and-three-quarter-inch vertical metal Z-girts. A weather-resistive barrier membrane is integrated with liquid-applied flashing prestrips and additional liquid-applied flashing over sheet metal flashings to conceal fasteners, which are secured with two rows of sheet metal screws into the vertical metal Z-girts.
1" 5/8" LIQUID APPLIED FLASHING PRESTRIP PREFINISHED SHEET METAL HEAD FLASHING (SITE INSTALLED) 1/2" SILICONE SEALANT O/ BACKER ROD - TIE TO CONTINUOUS SEAL @ WINDOW PERIMETER WRB MEMBRANE CASCADIA CLIP W/ 1.75" VERTICAL METAL Z-GIRT GRC CLADDING PER ARCH PREFINISHED SHEET METAL TRIM OR GASKET (BEYOND AT JOINT) BACKUP WALL PER ASSEMBLY TAG 2 ROWS OF SHEET METAL SCREWS FASTENED INTO VERTICAL METAL Z-GIRT ADDITIONAL LIQUID APPLIED FLASHING FROM WRB OVER SHEET METAL FLASHING TO CONCEAL FASTENERS PREFINISHED SHEET METAL FLASHING W/ HEMMED DRIP EDGE INSECT SCREEN SILICONE SEALANT HEEL BEAD AT FULL PERIMETER OF INTERIOR GLAZED IGU INTERMITTENT WINDOW ATTACHMENT CLIP SET IN SILICONE SEALANT @ LINE OF AIR BARRIER SEAL PREFINISHED METAL FLASHING TO COVER INSULATION 3" 8001 7180 8097 8709 lx = 5.46 Ix=2.38 5765 11 3/4" 2 1/2" ENSURE CONTINUOUS SUPPORT FOR FINISH AT STRAP LOCATIONS
