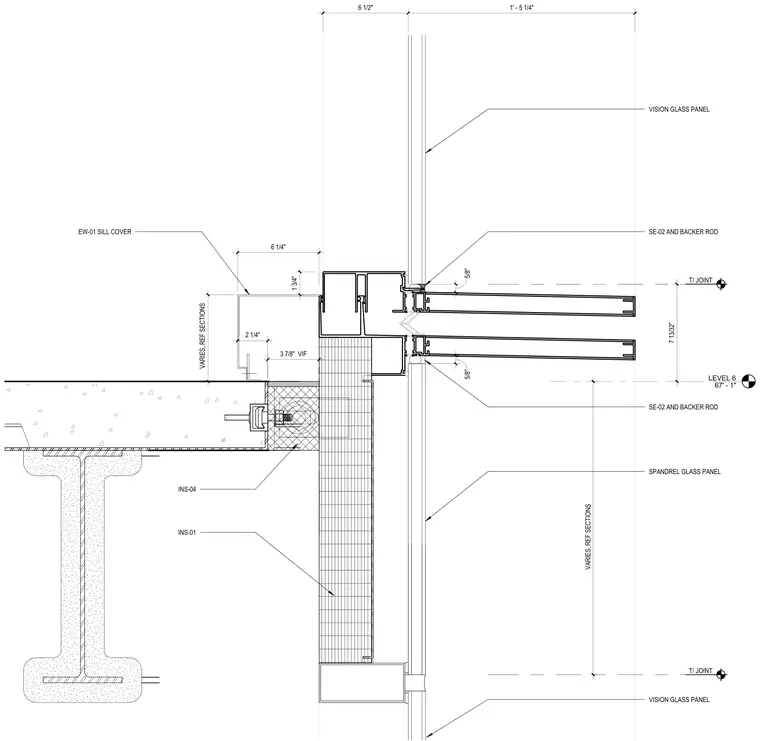

A curtain wall interface occurs at a concrete slab edge and steel beam floor assembly. The curtain wall framing incorporates vision glass panels and spandrel glass panels sealed with sealant and backer rods. Insulation elements designated as INS-01 and INS-04 are integrated at the slab edge condition. An EW-01 sill cover finishes the interior sill condition above the slab with variable dimensions and verified field measurements.
LEVEL 6 67' - 1" SE-02 AND BACKER ROD VISION GLASS PANEL SPANDREL GLASS PANEL VISION GLASS PANEL T/ JOINT INS-01 7 13/32" VARIES, REF SECTIONS SE-02 AND BACKER ROD T/ JOINT VARIES, REF SECTIONS EW-01 SILL COVER INS-04 6 1/4" 6 1/2" 1' - 5 1/4" 3 7/8" VIF 2 1/4" 5/8" 5/8" 1 3/4"
