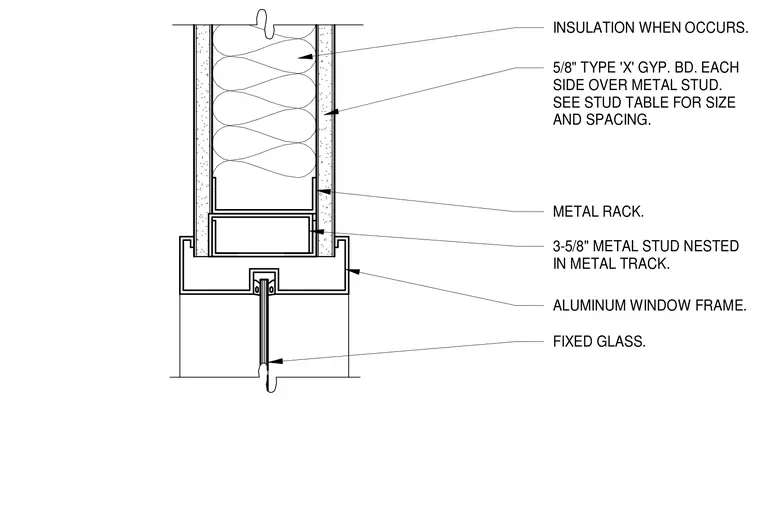

An aluminum window frame secures fixed glass at the head of the opening below a framed wall assembly. The wall framing consists of 3-5/8 inch metal studs nested in a metal track, faced on each side with 5/8 inch Type X gypsum board over metal framing. Insulation fills the cavity where required by thermal or acoustical conditions. A metal track provides structural support at the head condition above the window frame.
INSULATION WHEN OCCURS. 5/8" TYPE 'X' GYP. BD. EACH SIDE OVER METAL STUD. SEE STUD TABLE FOR SIZE AND SPACING. METAL RACK. 3-5/8" METAL STUD NESTED IN METAL TRACK. ALUMINUM WINDOW FRAME. FIXED GLASS.
