Curved Wood Bench with Integrated LED Lighting at Planter and Paving

Materials

Concrete Steel Stainless Steel Metal (misc.)

Elements

Waterproofing / Flashing Insulation Drainage Site / Paving Anchors / Embeds Connections / Plates Roof / Floor Openings

Connections

Gusset Plate Base Plate / Anchorage Bolted Connection

About this detail

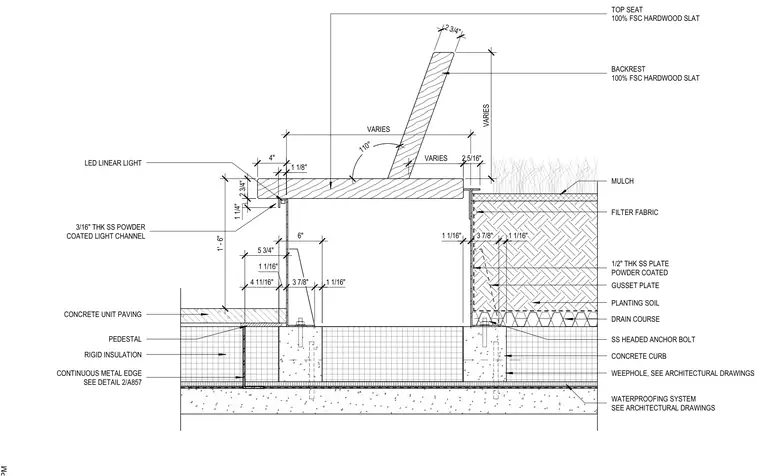

A custom curved bench is constructed with one hundred percent Forest Stewardship Council certified hardwood slats for the top seat and backrest, set at a one hundred and ten degree angle. The seat assembly is supported by a three-sixteenths-inch thick powder-coated stainless steel light channel housing an LED linear light, anchored to a concrete curb with stainless steel headed anchor bolts. A half-inch thick powder-coated stainless steel gusset plate connects the backrest structure to the underlying concrete curb assembly. The adjacent planting area includes mulch, filter fabric, planting soil, and a drain course over a waterproofing system, while the exterior paving side features concrete unit pavers on pedestals over rigid insulation, continuous metal edge flashing, and weepholes.
