An aluminum threshold is set in a continuous bed of sealant directly over finished concrete at the base of a rated door. A smoke seal is installed where scheduled at the door frame. Floor finishes are installed per schedule or provided not in contract and determined by the tenant.

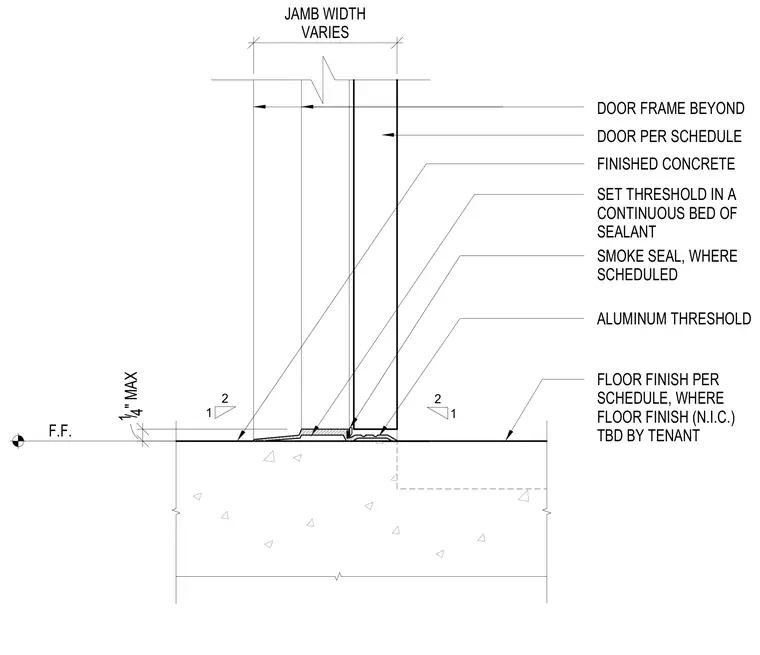

1/4" MAX JAMB WIDTH VARIES F.F. SMOKE SEAL, WHERE SCHEDULED SET THRESHOLD IN A CONTINUOUS BED OF SEALANT FLOOR FINISH PER SCHEDULE, WHERE FLOOR FINISH (N.I.C.) TBD BY TENANT DOOR PER SCHEDULE ALUMINUM THRESHOLD DOOR FRAME BEYOND FINISHED CONCRETE 2 1 2 1
